ATW-A80

Basic Functions:

Measurement of parameters such as toe-in&toe-out, camber , kingpin inclination, kingpin caster, setback, thrust angle, toe-out on turns, and maximum steering angle;

Advanced Functions:

Automatic Tracking, Body Dimensions Measurement, Toe Adjustment Assist, Body Height Measurement, Tire Inspection, Rolling Radius Measurement, Push/Pull Compensation, Single Wheel, Two-Wheel, and Four-Wheel Measurement.

Software Advantages:

①Efficient Vehicle Selection: Supports vehicle selection by brand and search query for faster operation.

②High Precision: Measurement accuracy up to 0.01°, ensuring superior results.

③Comprehensive & Updated Database: Utilizes an internationally authoritative database, updated annually with lifelong free access, covering a wide range of vehicle models.

④Multi-language Support: Interface supports 36 languages for global use.

⑤Versatile Functionality: Software includes basic measurement functions, as well as advanced features for luxury and modified vehicles.

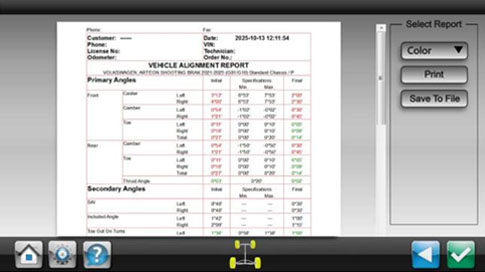

⑥Comprehensive Reporting: Displays complete data; allows reporting for body dimensions, tire tread inspection, and all measurement results.

⑦Multilingual Voice Guidance: Simplifies and speeds up alignment.

⑧Supports internet connection formobile phones and tablet computers,convenient for single-person operation & maintenance.

Software Overview：

Software Interface

Check Tire & Chassis before doing alignment

Vehicle Selection: Select vehicle models by brand Supports single-wheel, two-wheel, and or search keyword, Database covering 120,000standard four-wheel alignment models. Once-click update database.

Measurements

Run-out Compensation Measurement

Caster, toe-out on turns and maximum steering angle measurement

Front Wheel Measurement Data

Rear Wheel Measurement Data

Allows for third-party storage and printing Of test results.

Single Wheel Alignment Measurement

Body Dimension Measurement

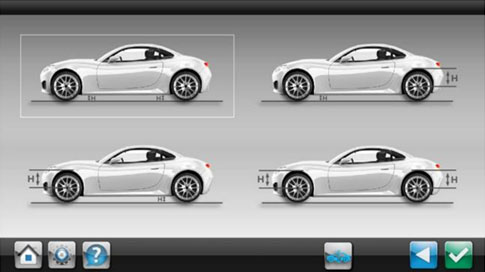

Vehicle Body Height Measurement

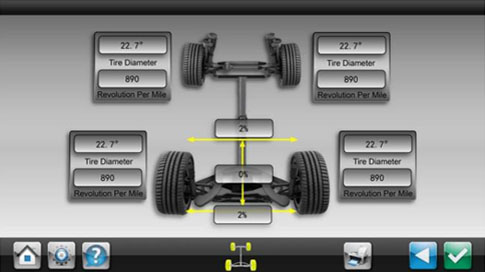

Rolling Radius Measurement

Toe Adjustment Assistance

Hardware Advantages:

①The 5.0MP Professional 3D high-precision industrial camera adopts original imported chips:

High Accuracy:The camera is embedded with an intelligent recognition system,Which has fast image processing, more realistic and effective data collection, and high measurement accuracy;

Intelligent & Fast:Intelligent cache preprocessing system,Fast and stable data transmission;

Adaptive & Durable:The intelligent exposure compensation automatic adjustment system,Strong adaptability to environments such as infrared, strong light, weak light, polarization, etc. It has a wide range of applications and a long lifespan.

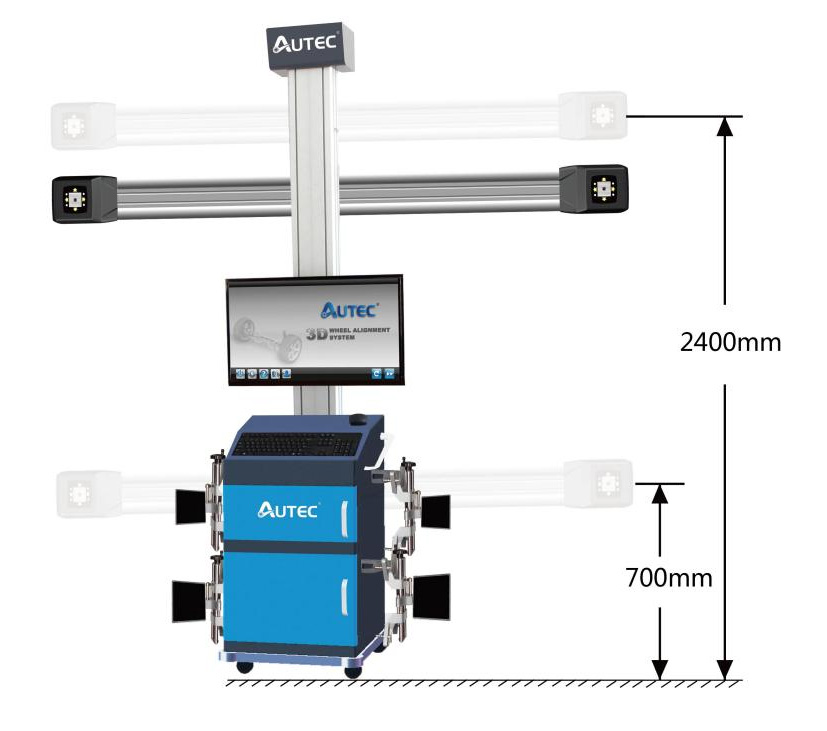

②NewAutomatic tracking beam: Automatically and intelligently locate the optimal measurement position in real-time. Allows measurement at a low position, whileadjusting chassis parameters at a high position for enhanced efficiency.

③Hidden Target Plates: No electronic components, making them waterproof, shock-resistant, and highly stable.

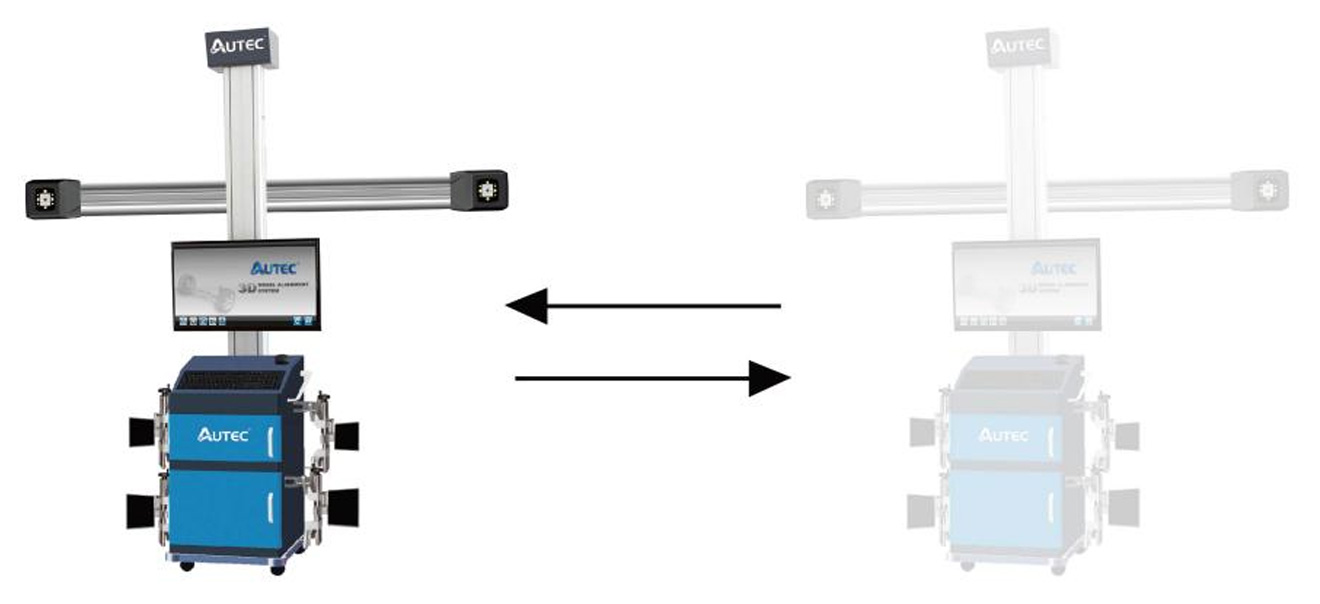

④Integrated Movable Design: Columns, crossbeam, and cabinet, whole set movable enablingmulti-station measurement

⑤New Four-Point Clamps: multiple mounting points to fit a wide range of rims (11 to 25 inches).

⑥One-Piece Cast Steel Turntable Plates: durable, max capacity 8-ton.

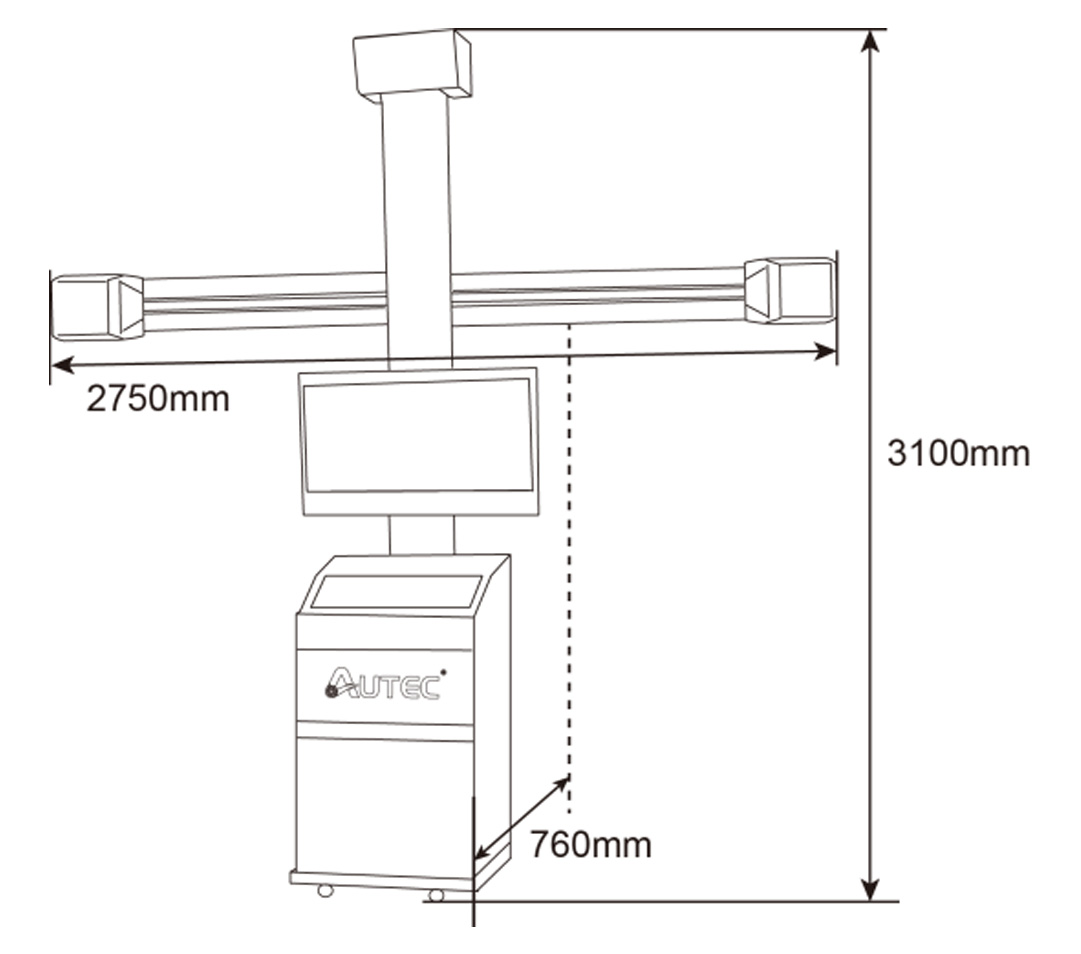

Product Applicability & Installation:

It can be used for scissor lift, four post alignment liftand pit.

The special camera has a long focal length and a wide field of view, suitable for a wide range of vehicle models. The standard installation distance is 1.8 - 2.3 meters. It can be installed at extremely short or extremely long distances, and can also be installed without overall movement.

Hardware Overview：

High Accuracy:

The 5.0MP Professional 3D high-precision industrial camera adopts original imported chips.The camera is embedded with an intelligent recognition system,Which has fast image processing, more realistic and effective data collection, and high measurement accuracy;

Intelligent & Fast:

Intelligent cache preprocessing system,Fast and stable data transmission;

Adaptive & Durable:

The intelligent exposure compensation automatic adjustment system,Strong adaptability to environments such as infrared, strong light, weak light, polarization, etc. It has a wide range of applications and a long lifespan.

Waterproof and Shock-resistanttarget plate:

Hidden and Visual target plate selection,No electronic components, making them waterproof, shock-resistant, and highly stable.

Two types New Four-Point Clamps:

Multiple mounting points to fit a wide range of rims (11 to 25 inches).

Software control automatic tracking:

New Automatic tracking beam: Automatically and intelligently locate the optimal measurement position in real-time. Allows measurement at a low position, whileadjusting chassis parameters at a high position for enhanced efficiency.

Exquisite Turntable:

One-Piece Cast Steel Turntable Plates:  durable, max capacity 8-ton.

Mobile/Tablet Connectivity:

Supports internet connection for mobile phones and tablet computers, convenient for single-person operation & maintenance.

Integrated Movable Design:

Columns, crossbeam, and cabinet, whole set movable enabling multi-station measurement
