ATW-A30

Basic Functions:

Measurement of parameters such as toe-in&toe-out, camber , kingpin inclination, kingpin caster, setback, thrust angle, toe-out on turns, and maximum steering angle;

Extensive functions:

Body measurement,toe-inadjustment,tire inspection,run out compensation, single-whee/dual-wheel/four-wheel measurement.

Software Advantages:

①Vehicle model selection supports vehicle brand selection and search query functions, making car selection faster;

②The measurement accuracy can reach 0.01 °, with higher precision;

③Adopting internationally authoritative databases, upgrading once a year, lifetime free use, and comprehensive vehicle models;

④Supports languages from 36 countries and regions;

⑤The software has basic measurement functions and luxury car features such as body dimensions;

⑥The data display is comprehensive, and reports can be printed for vehicle body measurement, tire pattern inspection etc.

⑦Multilingual Voice Guidance: Simplifies and speeds up alignment;

⑧Supports internet connection for mobile phones and tablet computers, convenient for single-person operation & maintenance.

Software Overview：

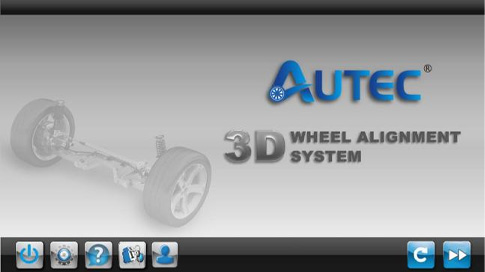

Software Interface

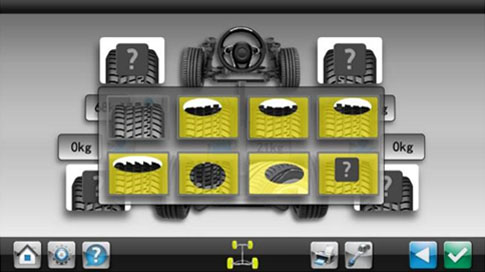

Check Tire & Chassis before doing alignment

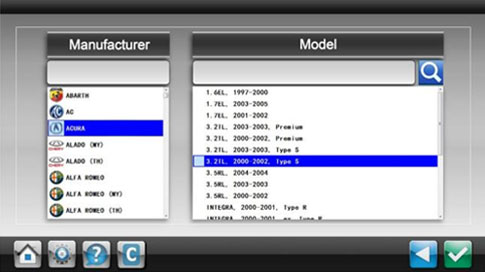

Vehicle Selection: Select vehicle models by brand Supports single-wheel, two-wheel, and or search keyword, Database covering 120,000standard four-wheel alignment models. Once-click update database.

Measurements

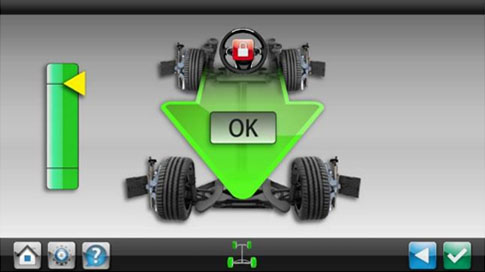

Run-out Compensation Measurement

Caster, toe-out on turns and maximum steering angle measurement

Front Wheel Measurement Data

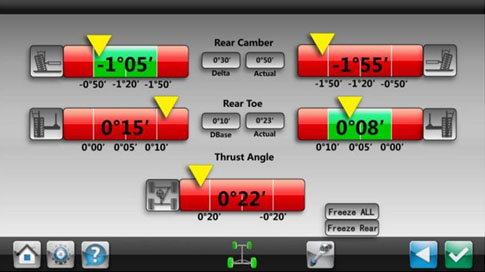

Rear Wheel Measurement Data

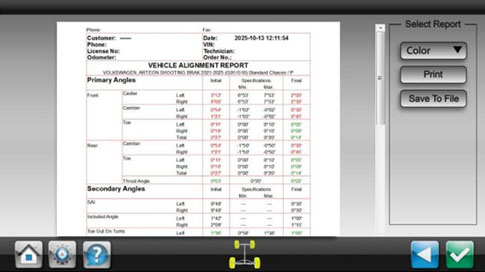

Allows for third-party storage and printing Of test results.

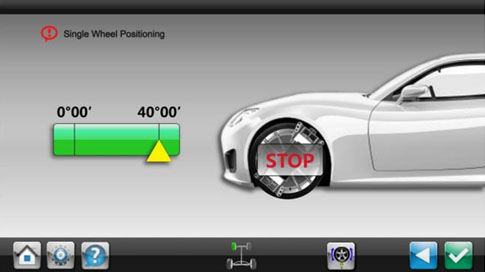

Single Wheel Alignment Measurement

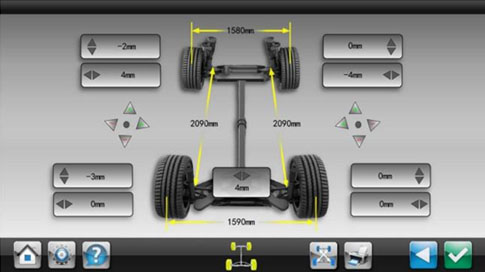

Body Dimension Measurement

Toe Adjustment Assistance

Hardware advantages:

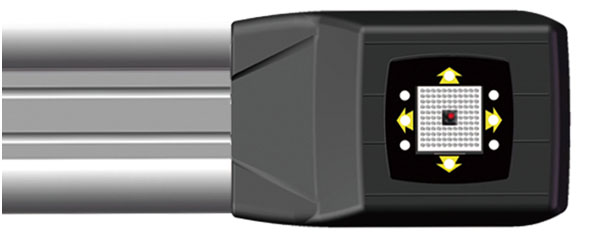

①The 1.3MP Professional 3D high-precision industrial camera adopts original imported chips:

High Accuracy:The camera is embedded with an intelligent recognition system,Which has fast image processing, more realistic and effective data collection, and high measurement accuracy;

Intelligent & Fast:Intelligent cache preprocessing system,Fast and stable data transmission;

Adaptive & Durable:The intelligent exposure compensation automatic adjustment system,Strong adaptability to environments such as infrared, strong light, weak light, polarization, etc. It has a wide range of applications and a long lifespan.

②New sheet metal column, manually adjustable crossbeam height;

③Visual target plate, without electronic components, waterproof and drop resistant, more stable;

④The cabinet adopts an all-in-one design, occupying a small space;

⑤Four point clamp with multiple installation head positions, suitable for 11-25 inch wheel rims;

⑥The one-piece die cast steel turntable plate is durable, a single load-bearing capacity of 8 tons.

Product Applicability & Installation:

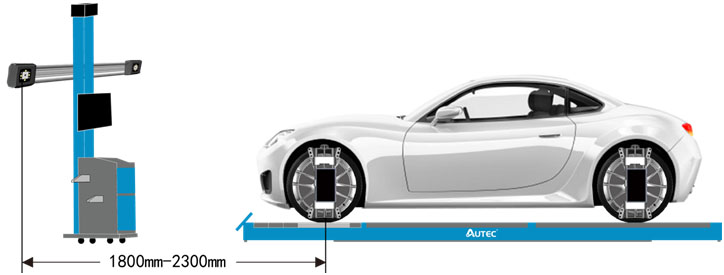

It can meet the needs of scissor lifts, four column lifts, and trench lifts. The dedicated camera has a long focal length and a wide field of view, suitable for a wide range of vehicle models. The standard installation distance is 1.8-2.3 meters, which can achieve ultra short and ultra long distance installation. It can also be installed in wall mounted, crossbeam installation , or ceiling mounted ways, with strong adaptability to the sit.

Hardware Overview：

High Accuracy:

The 1.3MP Professional 3D high-precision industrial camera adopts original imported chips.The camera is embedded with an intelligent recognition system,Which has fast image processing, more realistic and effective data collection, and high measurement accuracy;

Intelligent & Fast:

Intelligent cache preprocessing system,Fast and stable data transmission;

Adaptive & Durable:

The intelligent exposure compensation automatic adjustment system,Strong adaptability to environments such as infrared, strong light, weak light, polarization, etc. It has a wide range of applications and a long lifespan.

Waterproof and Shock-resistanttarget plate:

Hidden and Visual target plate selection,No electronic components, making them waterproof, shock-resistant, and highly stable.

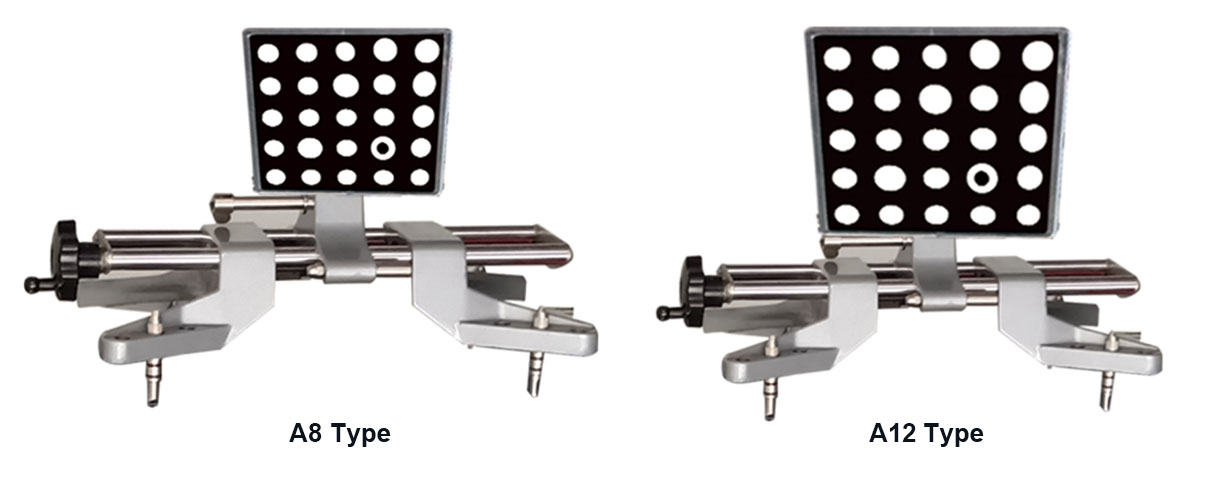

Two types New Four-Point Clamps:

Multiple mounting points to fit a wide range of rims (11 to 25 inches).

Exquisite Turntable:

One-Piece Cast Steel Turntable Plates: durable, max capacity 8-ton.

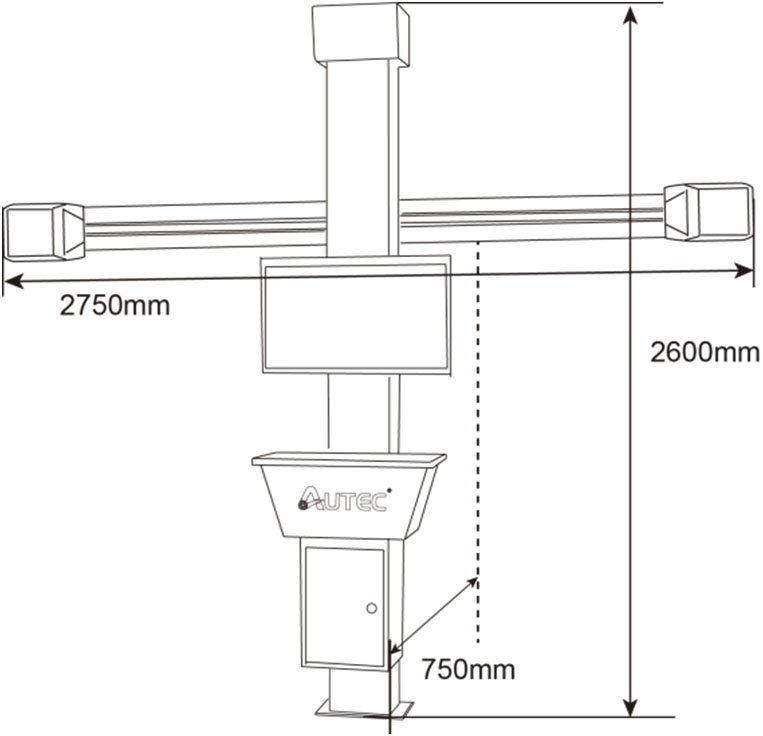

Installation Distance:
